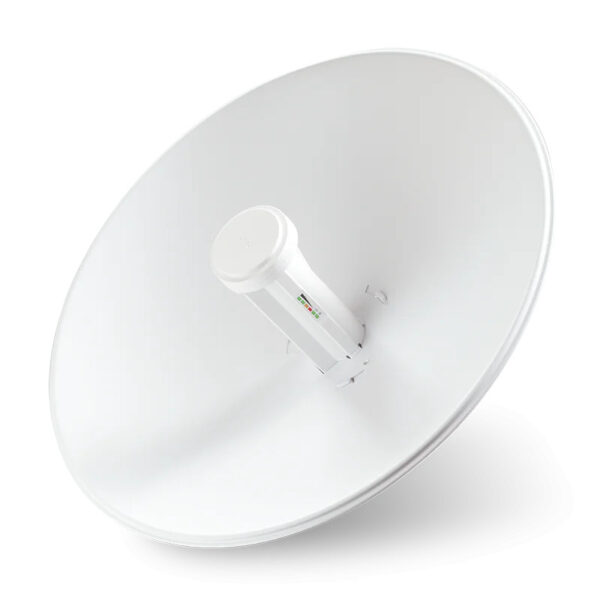

Ubiquiti UISP airMAX PowerBeam M5 25dBI 5GHz Radio Includes POE Injector | PBE-M5-400
Includes 25 dBi Integrated antenna
R1860
138 in stock (can be backordered)
138 in stock (can be backordered)
Description
Ubiquiti UISP airMAX PowerBeam M5 25dBI 5GHz Radio Includes POE Injector | PBE-M5-400
Includes 25 dBi Integrated antenna
The Ubiquiti airMAX PowerBeam M5 400 (PBE-M5-400-U) is a 5 GHz wireless bridge designed for reliable long-range connectivity in Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications. It combines a high-gain antenna with robust hardware for consistent performance, making it ideal for WISPs and enterprise networks requiring extended wireless coverage.
Key features:
25 dBi gain antenna with 400 mm dish reflector
Real TCP/IP throughput exceeding 150 Mbps
Up to 25 km link distance
Operates in the 5170–5875 MHz frequency range
Supports 5–40 MHz channel bandwidths
560 MHz Atheros MIPS 74Kc processor with 64 MB DDR2 RAM
8 MB flash memory
1× Gigabit Ethernet port
Powered via 24V, 0.5A passive PoE (max. 8W)
UV-stabilised outdoor enclosure
Wind survivability up to 200 km/h
Operating temperature: -40 to 70°C
±24 kV ESD/EMP protection
Meets environmental standards for outdoor deployments
UBAM-PBEM5-400
PBE-M5-400-U
Specification
Overview
| Weight | 21400000000,001 kg |
|---|---|
| Dimensions | 42,000000 × 42,000000 × 15,000000 mm |
