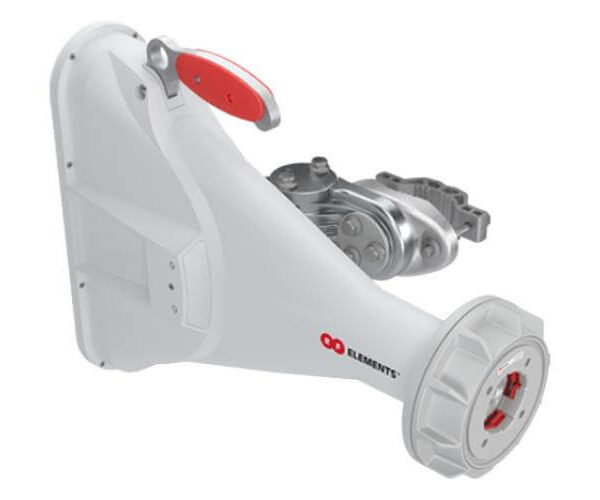

RF elements 60 deg Asymmetrical Horn Antenna
Asymmetrical Horn 5180 – 6000 MHz, Gain 17 dBi, 60 deg, TwistPort Connector
R6724
81 in stock (can be backordered)
81 in stock (can be backordered)
Description
RF elements 60 deg Asymmetrical Horn Antenna
Asymmetrical Horn 5180 – 6000 MHz, Gain 17 dBi, 60 deg, TwistPort Connector
The RF Elements AH60-TP 5GHz antenna delivers high gain comparable to traditional sector antennas while significantly enhancing noise rejection through its horn design. It features an asymmetrical beam pattern that provides a wide 60° azimuth and narrow 25° elevation coverage, optimising network planning and reducing interference in South Africa. Operating within the 5180–6000 MHz frequency range, this antenna maintains a consistent 17 dBi gain across all frequencies. The TwistPort™ connector enables tool-free installation with minimal RF loss. The design eliminates side lobes, ensuring effective noise isolation, making it suitable for high-density deployments. Its durable construction is designed for outdoor and elevated installations.
RF-AH-TPA60
AH60-TP
Specification
Overview
| Weight | 64400000000,001 kg |
|---|---|
| Dimensions | 52,000000 × 37,000000 × 14,000000 mm |
